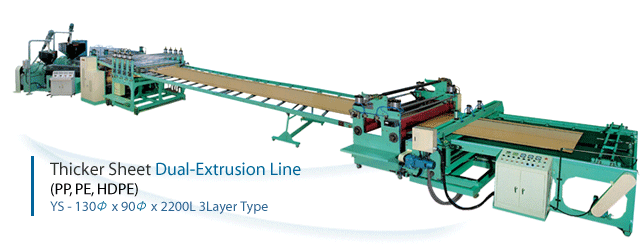

Available for produce upto 30mmt PP sheet !

It has been provided with all of the necessary capabilities for it to function
as a complete extrusion line for thicker sheet (6~30 mmt) manufacturing from PP, PE, PS and ABS material.

T-Die Extruder Polishing Roll

Item YS-100TSM YS-110TSM YS-(130x90)x2ETSM
General Sheet thickness 6 ~ 30 mmt
Width 700 ~ 1200 mm 900 ~ 1400 mm 1000 ~ 2000 mm
Extrusion out put 90 ~ 120 kg/hr 100 ~ 180 kg/hr 300 kg/hr
Extruder Screw 100 x LD = 30 120 x LD = 32 (130x90) x LD = 32
Material SCM 4
Cylinder SACM 645
Driving motor DC 75 kw DC 90 kw DV 132 kw
Screen
changer
Type Oil hydrauilc
Operation Semi-auto type
T-die Die width 1000 ~ 1400 mm 1000 ~ 1400 mm 1200 ~ 2200 mm
Material SCM 4
Heater Cartirige heater
Control panel Type Cabinet board
Heating controller 11 zone 11 zone 18 zone
Polishing
roll unit
Type 3 roll vertical
Roll 290 x 140 mm 310 x 1400 mm 400 x 2200 mm
Driving motor DC 1.5 kw DC 2.2 kw DC 2.2 kw
Roll adjust By air cyinder
Take up unit Roll 160 x 1400 mm 160 x 1600 mm 180 x 2200 mm
Driving motor DC 2.2 kw DC 3.7 kw DC 3.7 kw
Cutting unit Trimming (A) Straight Knife aaa(B) Ring knife aaa(C) Rotary saw
Length cutting (A) Air press aaa(B) Motor press aaa(c)Tip saw cutt
Winder Type Disk slip drive
Winding diameter Max, 450 mm
Driving motor 0.4 kw x 2 pcs 0.4 kw x 2 pcs 0.75 kw x 2 pcs
