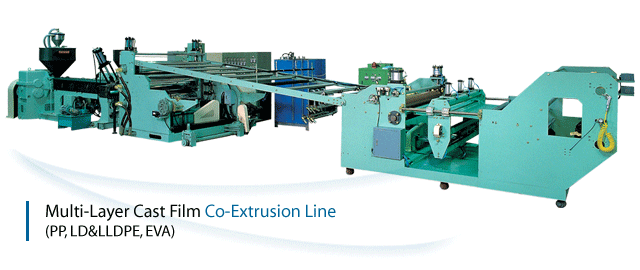

This system produces multilayer film by using different
types of materials.
Film with combined material properties is produced
for packaging applicability and added value.
ˇˇ Also, particularly useful when using the Combination
Adapter System.
Combination Adapter System is easily change the
film thickness by simple adjusting extruder output
ˇˇ for each layer, the ratio between layers can be
quickly changed. The Simple maintenance increases
ˇˇ sys tem operability. |
| |
 |
Applicable resin : PP, LD, LLDPE, EVA
Film layer : 2 layer & 3 layer
Film width : max 1,400 mm
Film thickness : 0.02 ~ 0.10 mmt |
|
 |
|
| |
 |
 |
 |
 |
| 2-Extruder |
2-Layer T-Die |
Polishing Roll |
|
| |
|
|
| |
|
|
