Man-Made Reservoirs : Pond, Dike,
Channel, Fish farm, Swiming pool
Tunnels : Road, Subway, Cable
duct, Open-cut
Construction : Rooftop, Roofgarden
Fields : Ware house, Gallery,
Undergriund tank
Sewage : Waste disposal dump
Treatment : Sewage purification
plant, Sanitary landfill disposal pits
Brine storage lagoons
Chemical : Waste & acid &
alkaline pounds
Industry : Surge ponds, Material
salvage basins rragation
Agriculture : Drainage canals
& ditches, Rain trapsm Stockwater
ponds |
|
 |
|
| |
 |
 |
 |

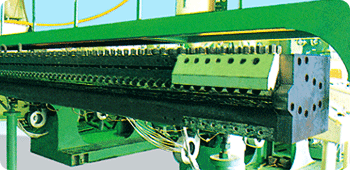

| T-Die Type |
T-Die & Polishing Roller |
 |
 |

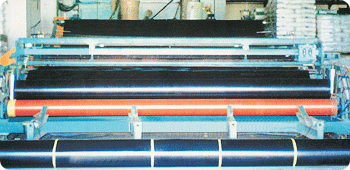

| 7000mm Sheet Winder |
Cutting & Take-up |
|
| |
 |
| Item |

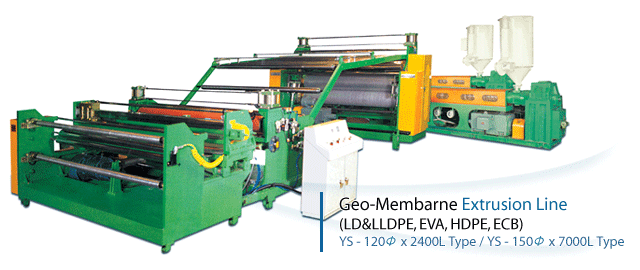

YS-120Φ x 2400L |
YS-150Φ x 7000L |
| Extruder |
Screw |
Φ120 x LD =
30 |
Φ150 x LD =
30 |
| Revolution |
20 ~ 60 R.P.M |
20 ~ 60 R.P.M |
| Material |
SCM 4 |
SCM 4 |
| Cylinder |
SACM 645 |
SACM 645 |
| Extruding out
put |
max.. 300 kg/hr |
max.. 500 kg/hr |
| Driving motor |
90 kw DC |
225 kw DC |
Screen
changer |
Type |
Oil hydraulic |
Oil hydraulic |
| Operation |
Semi-auto type |
Semi-auto type |
| T-die |
Type |
Manifold |
Manifold |
| Width |
2400 mm |
7300 mm |
| Material |
SCM 4 |
SCM 4 |
Polishing
roll unit |
Roll |
Φ350 x 2400L
x 3R.Vertical |
Φ600 x 7500L
x 3.Vertical |
| Roll adjust |
by air cylinder |
by air cylinder |
| Driving motor |
3.7 HP DC |
7.5 HP DC |
| Take
up unit |
Rubber roll |
Φ200 x 2400
mm |
Φ270 x 7300
mm |
| Driving motor |
2.2 KW DC |
3.75 KW DC |
| Cutting
unit |
Cutting system |
Rotary Knife
type |
Rotary Knife
type |
| Motor |
0.75 KW geared |
0.75 KW geared |
| Sheet clamping |
by air cylinder |
by air cylinder |
| Winder |
Winding diameter |
max. Φ500 mm |
max. Φ500 mm |
| Driving motor |
Geared motor
& clutch |
Geared motor
& clutch |
Heat
&
Cooling unit |
Heat &
cooling media |
by oil or water |
by oil or water |
| Heater |
10 KW x 3 zone |
15 KW x 3 zone |
|
| |
 |
|
| |
|
|
| |
|
|
